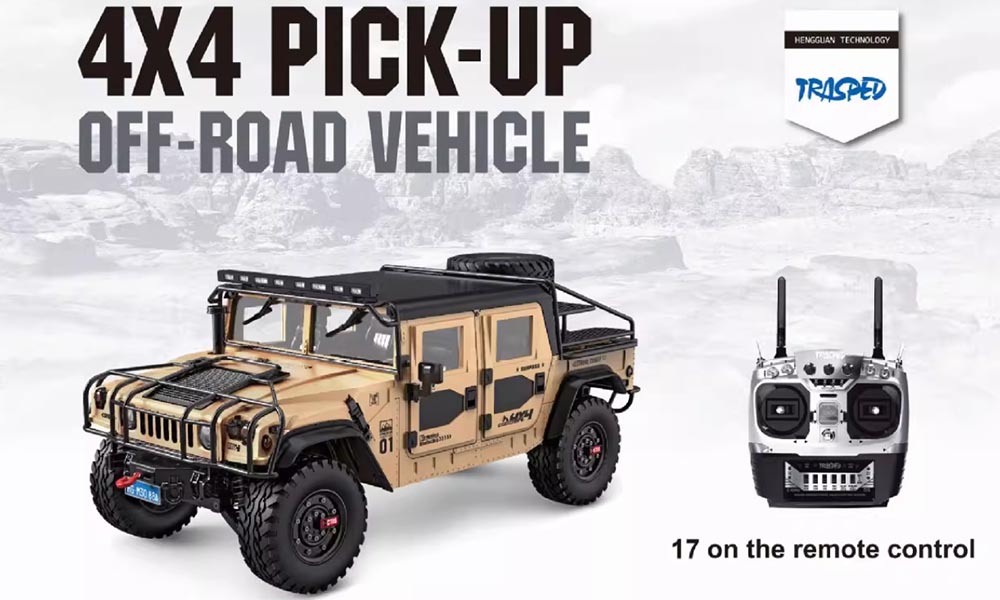

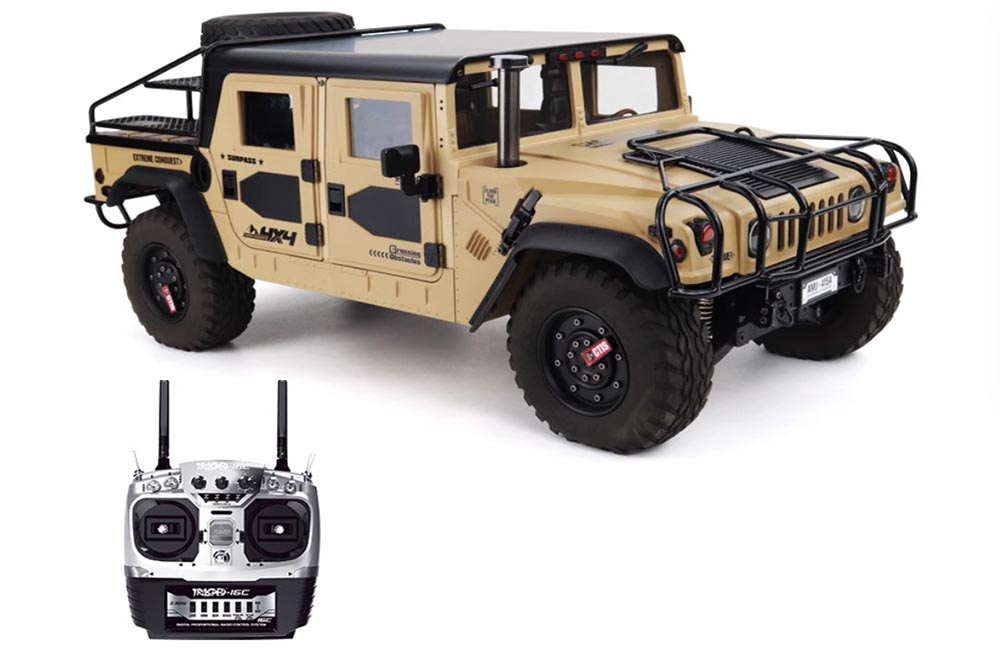

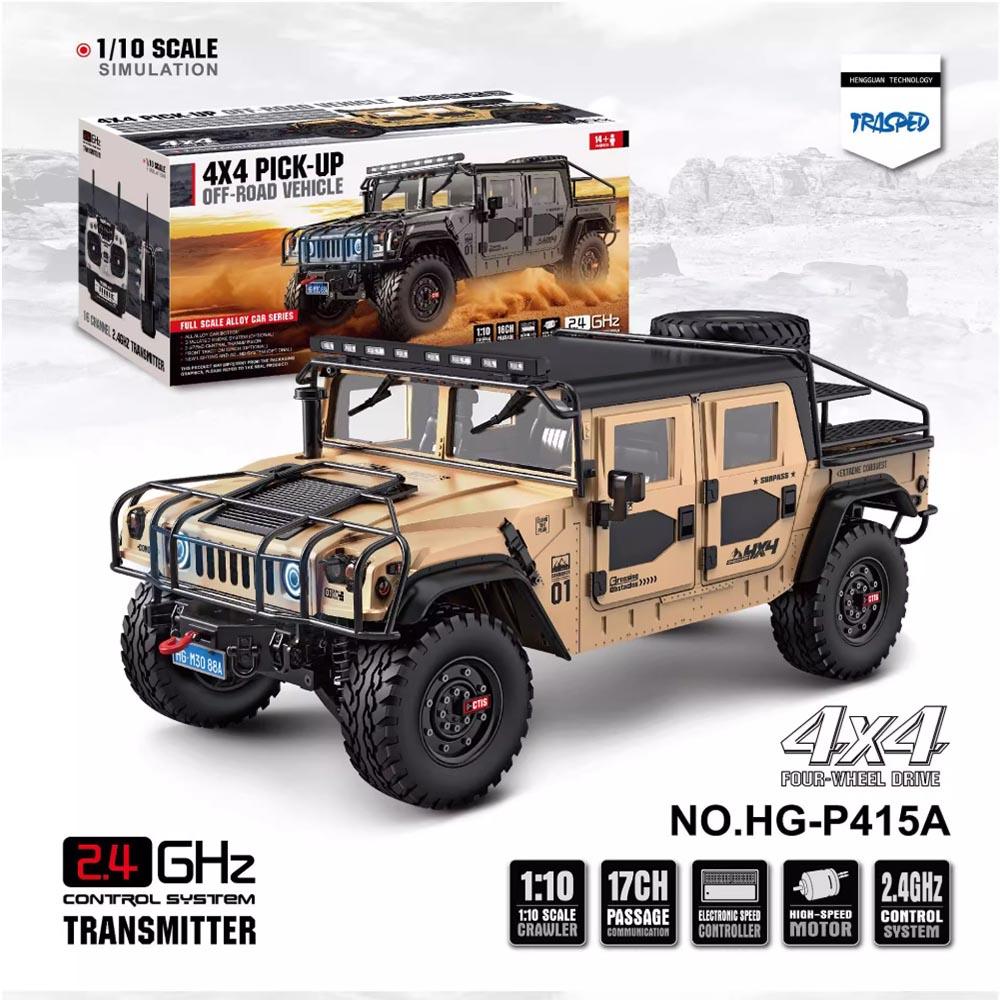

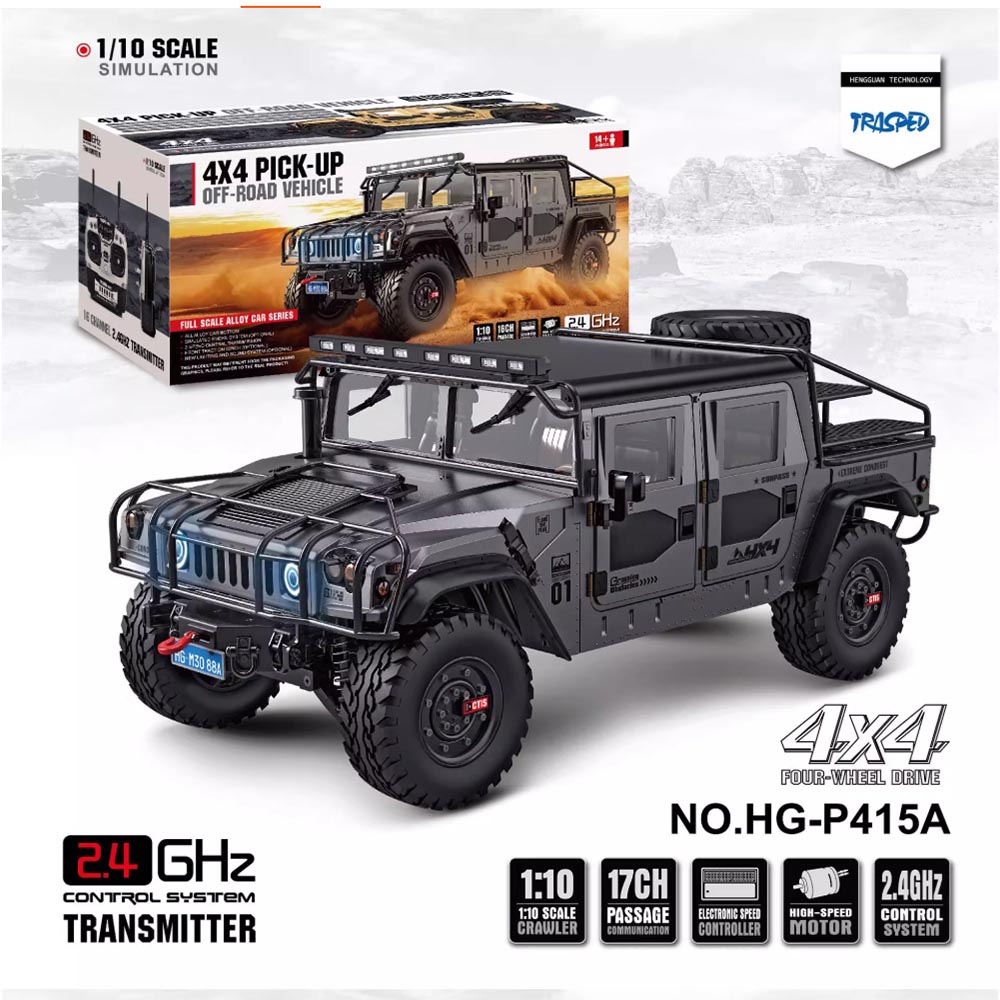

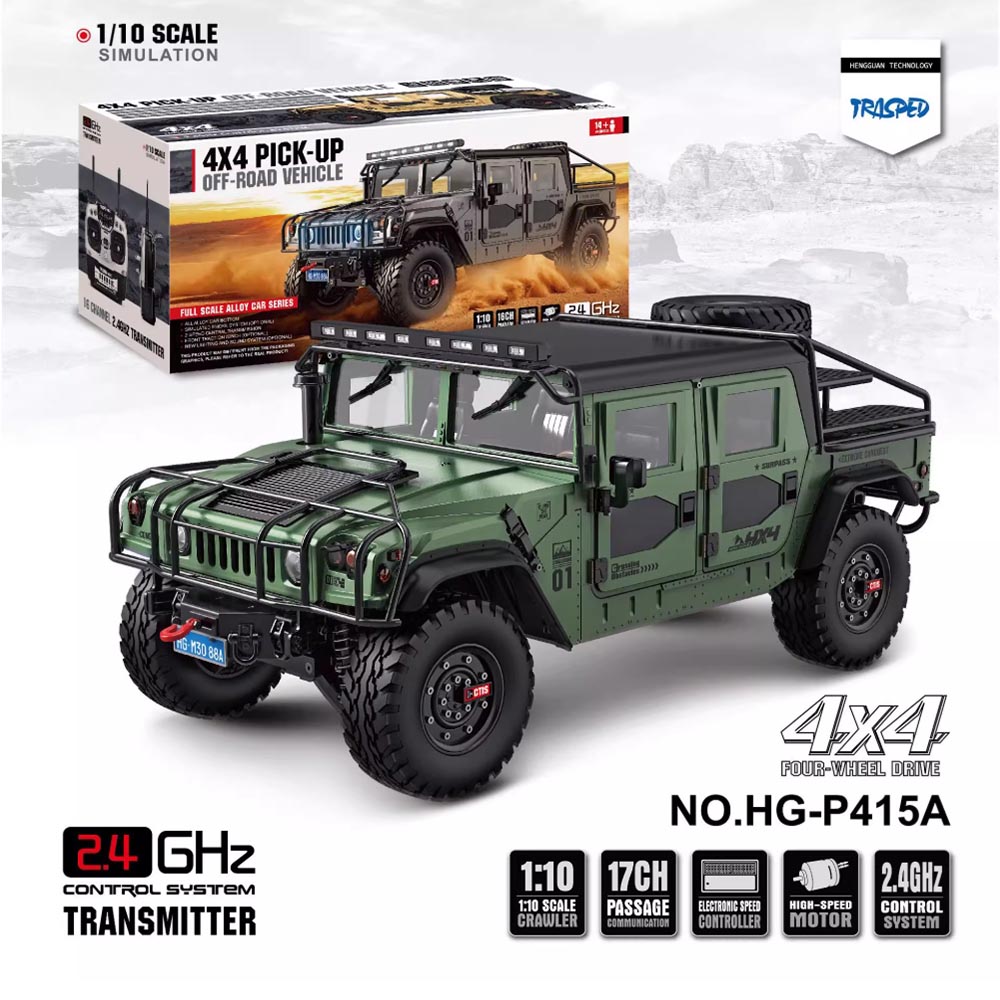

HENGGUAN New HG-P415A 1/10 Metal Simulation Pickup Truck Light Winch Remote Control Car

Hengguan HG-P415A Product description:

• Item number: HG-P415A
• Product name: Hengguan 1/10 2.4G-P415A (pickup truck model)
• Motor: 570-level brushed motor (12500 rpm, built-in fan, strong magnet, double bearings)
• Speed ​​regulator: 45A independent electric regulator

• Product specifications: Car: 49.5x26.7x21.7cm (length x width x height)
• Product battery: 7.4V 4500mAh 30C high rate soft pack lithium battery (purchased separately)
• Front and rear wheel spacing: 329.3mm
• Left and right wheel spacing: 187.3mm
• Frequency: 2.4G HZ
• Wheel diameter: Ф100mm
• Remote control distance: greater than or equal to 120 M (limited to open space without interference)

• Packaging (Chinese and English) English: Box
• Remote control category: full proportional panel control
• Color box specifications (English): 608mmx208mmx301mm
• Remote control time: about 30 minutes

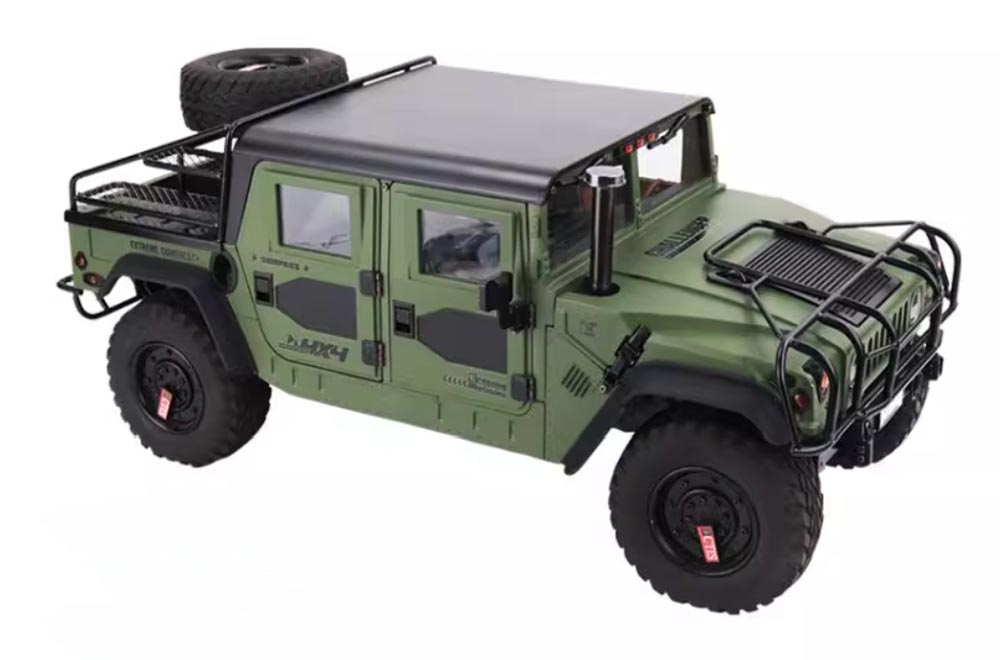

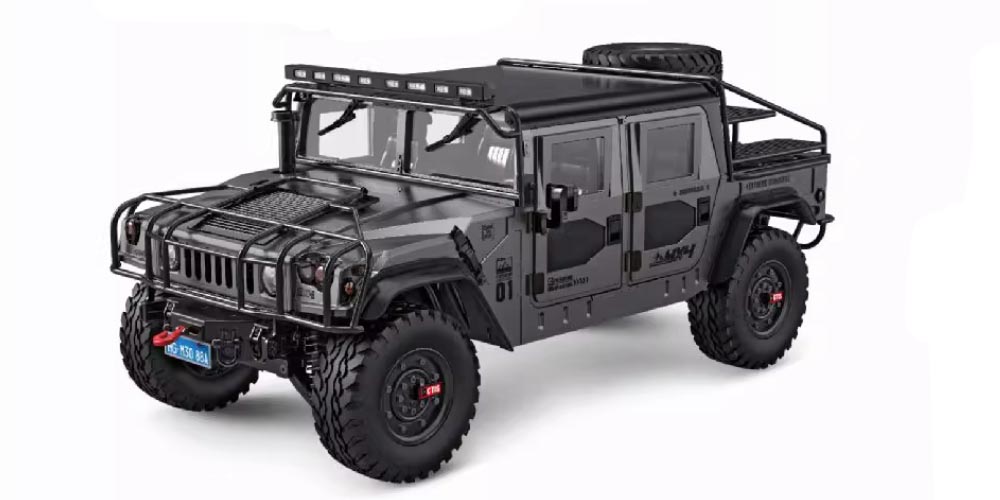

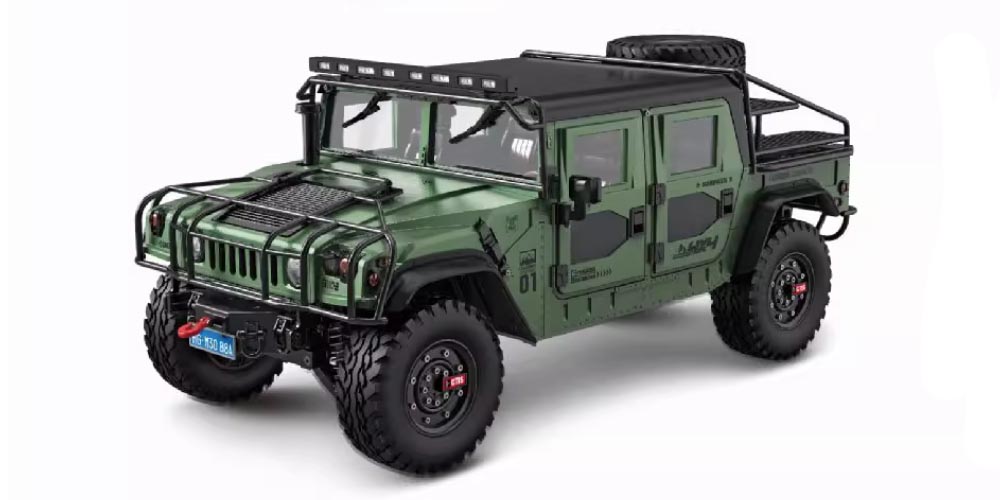

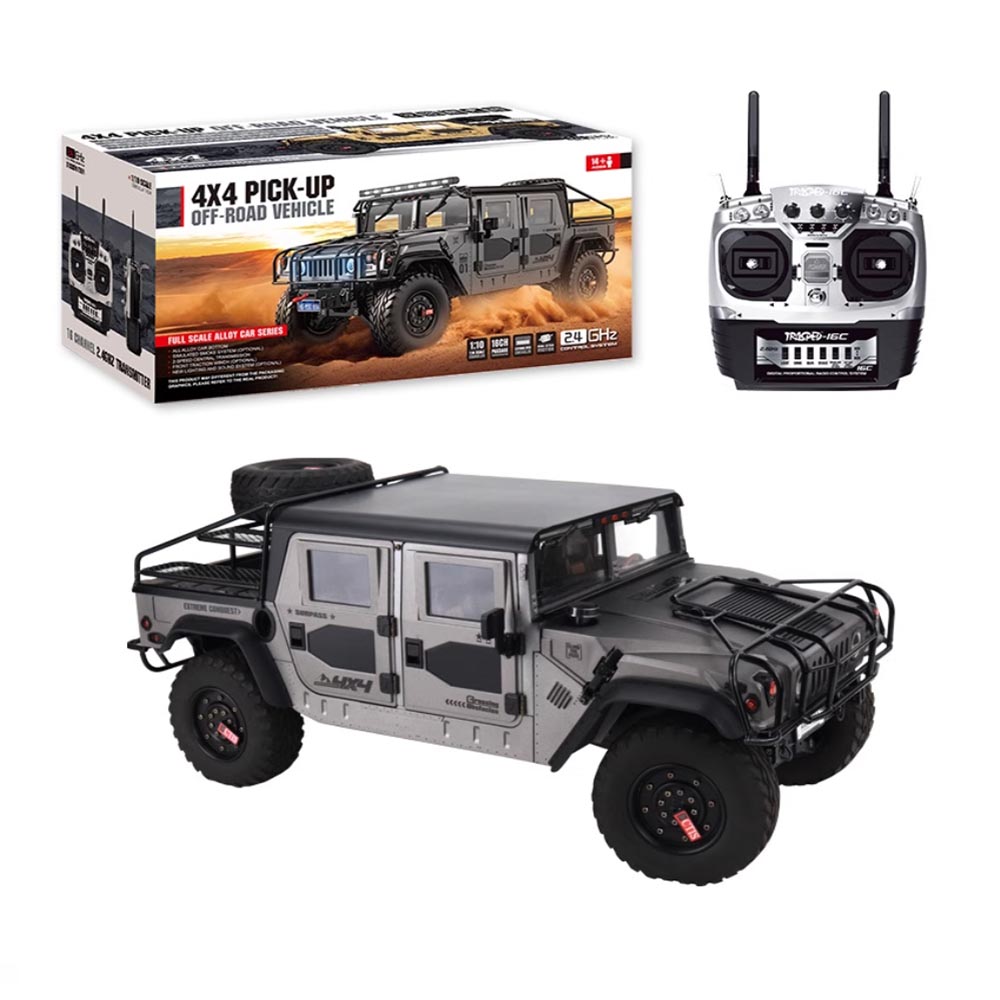

• Product color: silver gray, desert yellow, national defense green
• Charging time: about 4 hours
• Packing quantity: 1 piece
• Charger: 7.4V=800mAh (purchased separately)

• Outer box specifications (Chinese and English): 645mmx290mm x340mm
• Remote control battery: 6*1.5V AA battery (purchased separately)
• Material: hardware, plastic
• Low speed gear: 1:38.77 Speed: 13,000 rpm: low gear about 6.3 km/h
• High gear: 1:20.77 Speed: 13,000 rpm: high gear about 11.8 km/h
• Remarks: The model car has full proportional control functions for forward, backward, left and right steering.

Introduction to Hengguan HG-P415A standard product functions

1. Equipped with a new 570-level brushed motor (12,500 rpm, built-in fan, strong magnet, double bearings), it can effectively reduce the torque attenuation caused by the heat generated by the motor during work.
2. 9KG waterproof alloy gear digital servo.
3. 45A ESC: can switch between brake and no brake mode, and has two battery protection modes: Li-P0 and NI-HM (a. ESC with low voltage protection: when the battery voltage is too low, the ESC will start power-off protection. b. High temperature protection: when the working temperature of the ESC is higher than the set value, the ESC will start power-off protection: when the temperature drops to the normal value, it will return to normal.)
4. Independent suspension structure, also uses wheel-side reducer structure. This type of suspension has better elasticity, can absorb road vibration, and is stable at high speed.
5. Manual differential lock structure, which can realize independent locking and unlocking of the front and rear axles to meet the driving needs of more terrains
6. Adjustable shock absorber, which can obtain the best ideal shock absorption effect by adjusting the compression or release spring length of the shock absorber ring.
7. The remote electric two-speed transmission ratio can be switched arbitrarily (TOPGEAR1:20.77LOWGEAR1:38.77).
8. Throttle drive neutral adjustment, brake or no brake mode switching, forward and reverse switching.
9. Steering percentage amplitude adjustment, angle percentage and gear percentage amplitude adjustment, forward and reverse switching.
10. Standard configuration adds front and rear full metal anti-collision to make the model car more solid and durable.
11. With 5 all-terrain natural rubber tires, tire size: 22x38x55mm-R100-12m hexagonal wheel connector-maximum width of left and right tires: 225mm.
12. All-alloy bottom, with front and rear metal anti-collision, left and right nylon fenders, enhanced off-road anti-collision ability, easy to cope with various terrains.
13. 2.4G-new 16-channel full-proportional remote control system.
14. The wheel axle is upgraded to Φ6 steel axle, which greatly increases the service life and off-road capability, and the material of the differential planetary gear is replaced, so that it has a larger power upgrade space.
15. The gearbox uses "570 motor" to provide the car with stronger power.
16. New 17-channel remote control: supports digital communication

HG-P415A standard accessories delivery details

• Operation manual *1
• Screw box Hexagon TB screw (02.6x8mm) *11
• P415A car shell sticker *1
• Hexagon HB screw (02x6mm) *4
• Wheel fender (HG2021-294) *1
• Hexagon KB screw (02x4mm) *2
• Wheel *1
• Rearview mirror stainless steel tube (ø2.5*02.1*5.6) *2
• Wheel frame cover *5
• Flange toothed nylon lock nut M4 *1
• 1.5mm hexagon screwdriver *1
• Hexagon HB screw (02x8mm) *40
• 2.0mm hexagon screwdriver *1
• Hexagon HM screw (ø2x12mm) *2
• 2.5mm hexagon screwdriver *1
• Hexagon socket TB screw (ø2.6x12mm) *1
• Accessory package A nylon cable tie 3*150mm *5
• Hexagon socket HM machine screw (ø2x4mm) *2
• Wrench *1
• Wheel decoration *5
• Cross wrench (small) *1
• Rearview mirror L *1
• Cross wrench (large) *1
• Rearview mirror R *1
• Cross screwdriver *1
• Hexagon nut M2 *2
• Differential plug *2
• Remote control accessory package Sling hook *1
• Sponge double-sided tape *2
• USB cable *1
• Tip machine rice (ø3x4mm) *2
• Joystick positioning piece *1
• Flange nylon anti-loosening nut M5*2
• Hexagon socket HM machine screw (ø2x8mm) *4
• Pin screw (ø2.5x11mmxM3) *2
• Cross self-tapping screw (01.7x5mm) *4
• Pin screw (ø2.5x12mm xM4) *2

What are the characteristics of Hengguan HG-P415A 1/10 remote control pickup truck?

1. The metal body is durable and resistant to falling and collision.
2. 1/10 scale simulation of Hummer H1, exquisite details.
3. The lighting winch is fully functional and highly interactive.
4. The four-wheel drive system is equipped with a large torque motor, which is strong in off-road.
5. Independent hydraulic shock absorber, adaptable to various terrains.

How is the cost performance of Hengguan HG-P415A 1/10 remote control pickup truck?

1. Mid-to-high-end positioning, comprehensive functions, and excellent materials.
2. The simulation and performance are outstanding in the same price range.
3. Suitable for use in multiple scenarios, good parent-child interaction.
4. Accessories can be upgraded and have strong scalability.
5. E-commerce platforms often have discounts, which is cost-effective.

Is Hengguan HG-P415A 1/10 remote control pickup truck worth buying?

1. The first choice for simulation model enthusiasts, with high collection value.
2. Recommended by off-road players, with excellent resistance and passability.
3. The best choice for parent-child interaction, with strong functions and fun.
4. It can be purchased with sufficient budget, and the price-performance ratio is excellent.
5. It is recommended to experience the real thing before purchasing to ensure that it meets the needs.

Summary

Hengguanxin HG-P415A 1/10 metal simulation pickup truck, the all-metal body is sturdy and durable, with high simulation. Equipped with lights, winch, four-wheel drive system, strong off-road. High cost performance, suitable for model enthusiasts, off-road players and parent-child interaction, it is the best choice for outdoor adventure and collection display.
