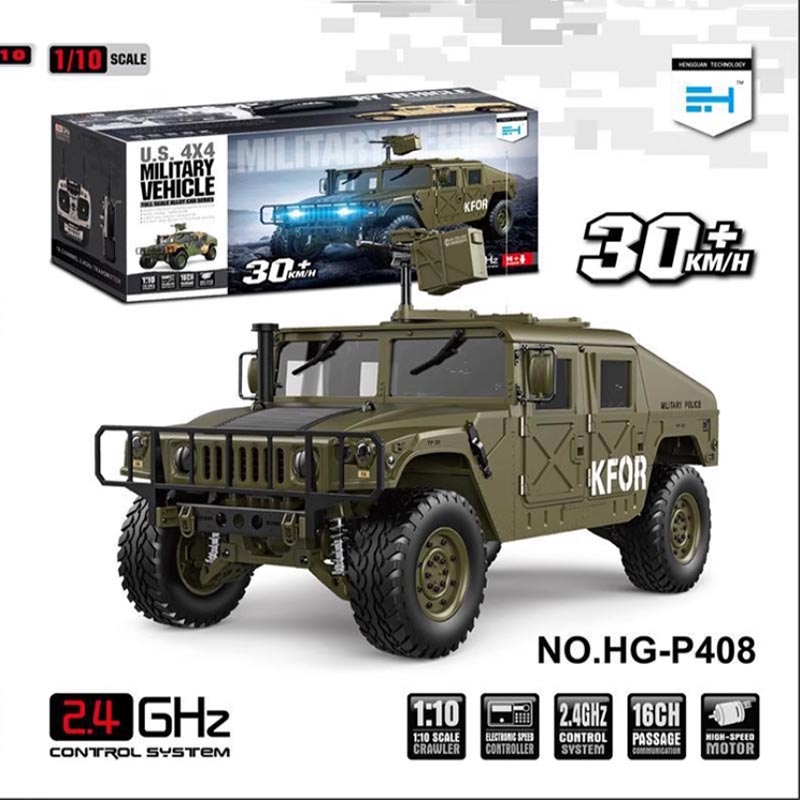

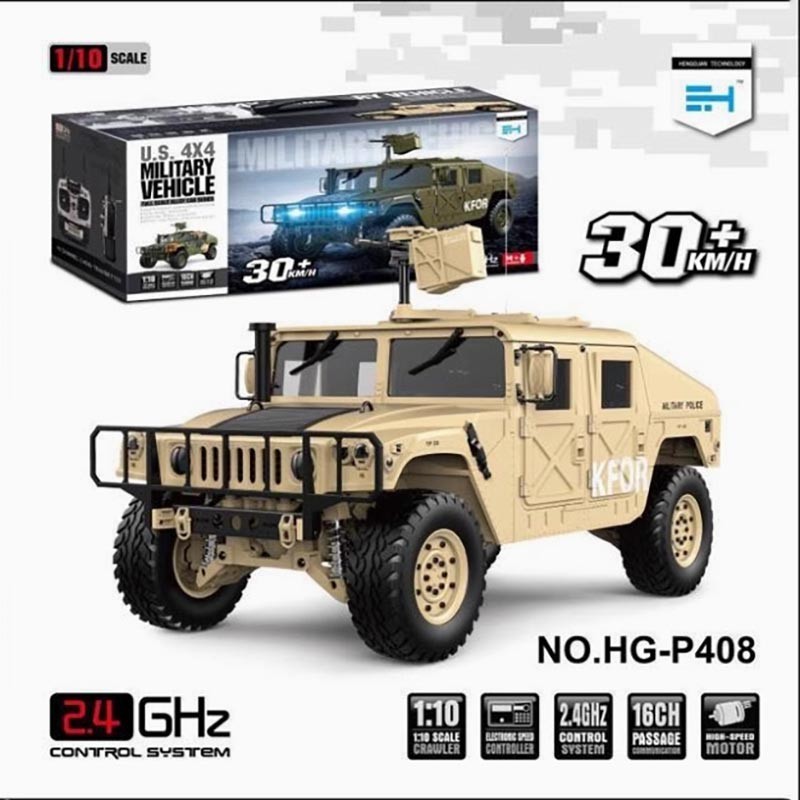

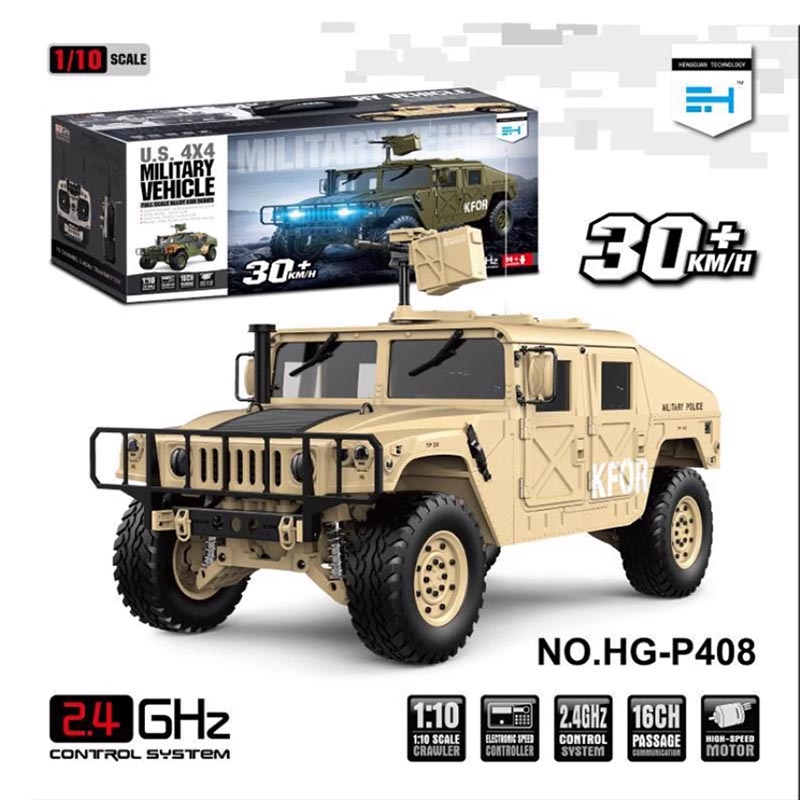

Hengguan HG-P408 1/10 Simulation 4WD Convertible Jeep Remote Control Off-road Vehicle

Basic Parameters of Hengguan HG-P408 RC CAR

• Types: Pro
• Size.: 48 * 23 * 22 cm
• Item NO: HG-P408
• SIZE OF CTN.: 64.5 * 28.5 * 34 cm
• Packing: C/B
• QTY./CTN.: 1 set
• G.W.: 9 kg N.W.: 8 kg

• Article No.: HG-P408
• Product Name: Hengguan 1/10 2.4G US 4x4 Military Vehicle
• Motor: 550-level brushed motor/3660 non-dramatic motor
• Speed ​​Regulator: 160A independent ESC/60A non-dramatic ESC
• Product Battery: 7.4V 4500mAh high-rate lithium battery (purchased separately)
• Frequency: 2.4G HZ
• Temperature Control Distance: ≥ 100 M
• Remote Control Category: Charger Full Proportional Synchronous Control System (Square Control, Gun Control
• Remote Control Time: About 30 Minutes
• Charging Time: About 4H
• Charger: 7.4V=800mAh (purchased separately)
• Control Battery: 4* 1.5V AA Battery (purchased separately)
• Protection Function: Charging, low voltage, high temperature
• Speed: 20KW/H for low gear, 30KW/H for high gear

Product specifications

1. Car: 472x227X267m (length x width x height)
2. Wheelbase: 329mm Track: 225m
3. Wheel diameter: 100mm Wheel width: 38mm

• Packaging (English): English box, EPP inner box double open (with handle)
• Color box specifications (English): 628mm= 208mm=mx301mm
• Product color: military green, desert yellow, camouflage
• Packing quantity: 1 set
• Outer box specifications (English): 63.8x28x32cm
• Gross weight: 9KG
• Net weight: 6.5KG
• Material: hardware, electronics, plastic

1. Charging protection: protection function for battery overcharge and overcurrent.
2. Low voltage protection: The electronic speed controller is protected when the battery voltage is low.
3. High temperature protection: When the working temperature of the electronic speed controller is higher than the set value, the electronic speed controller will protect the drive circuit and resume work after the temperature returns to normal.
4. Main functions: This model has full proportional synchronous remote control functions such as forward, backward, brake, left and right turns.

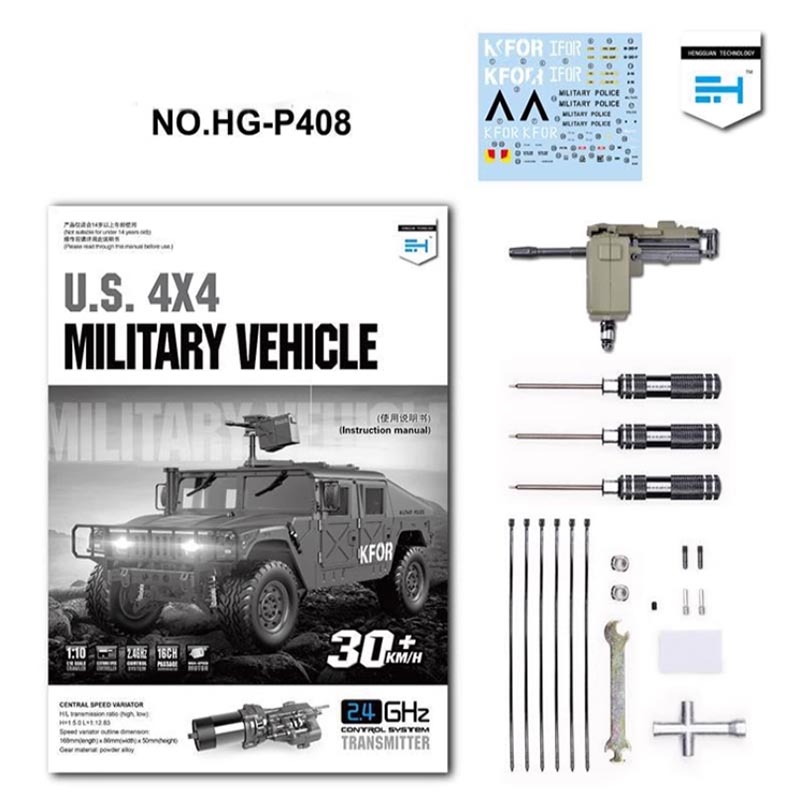

HG-P408 Accessories Delivery Details

1. Machine gun accessories set * 1
2. Product manual * 1
3. 2.5 * 12mm pin screw * 2
4. 2.4 * 11mm pin screw * 2
5. M3 * 4 chicken screw * 1
6. 1.5mm hexagon screwdriver * 1
7. 2.0mm hexagon screwdriver * 1
8. 2.5mm hexagon screwdriver * 1
9. Cross set (small) * 1
10. M4 flange nylon anti-loosening nut *
11. Hexagonal open-end wrench (small) * 1
12. Nylon cable tie 3 * 150mm (black) * 6
13. Product sticker, double-sided tape * 1

Hengguan HG-P408 RC CAR product performance parameters

1. Maximum climbing angle: low gear 45°: high gear 35
2. Maximum wading depth: 50mm
3. P408 maximum speed: 30KM/H4
4. Maximum front wheel steering angle: 305
5. Maximum ditch width: 80mm
6. Vehicle transmission ratio: H=15.3 L=28.027
7. Car hood lifting angle: 908
8. Car shell rear cover lifting angle: 58

Hengguan HG-P408 RC CAR product detailed configuration parameters

Electronic part

1. 550-level high-power brushed motor/3660 brushless motor (purchased separately)
2. 7.4V 4500mAh 30C high-rate lithium battery (purchased separately)
3. 1 9KG alloy gear digital steering servo
4. 160A brushed independent ESC/60A brushless ESC (purchased separately)
5. 2.4G full-proportional synchronous remote control system (square control, gun control optional)
6. Remote control with channel forward and reverse settings, remote control distance>100 meters
7. Four-wheel drive low speed and four-wheel drive high speed can be remotely changed at will
8. Electric control with brake/no brake function switch
9. 9g gear shift servo can be remotely operated to switch gears
10. LED light group and sound group can be easily attached

Mechanical part

1. The whole vehicle is equipped with a 2-speed medium gearbox with dustproof transmission and closed gears.
2. The front and rear axle differentials can be manually locked.
3. The whole vehicle adopts a double wishbone independent suspension system.
4. High torque side wheels, reduction ratio 1:1.4.
5. Large stroke buffer hydraulic shock absorbers, simulated rubber tires.
6. Highly simulated metal trapezoidal frame, metal chassis of the whole vehicle.
7. Variable stroke universal metal shaft transmission system.
8. Highly refined ABS plastic body, highly simulated body appearance.
9. The roof can be removed at will and changed to a convertible.

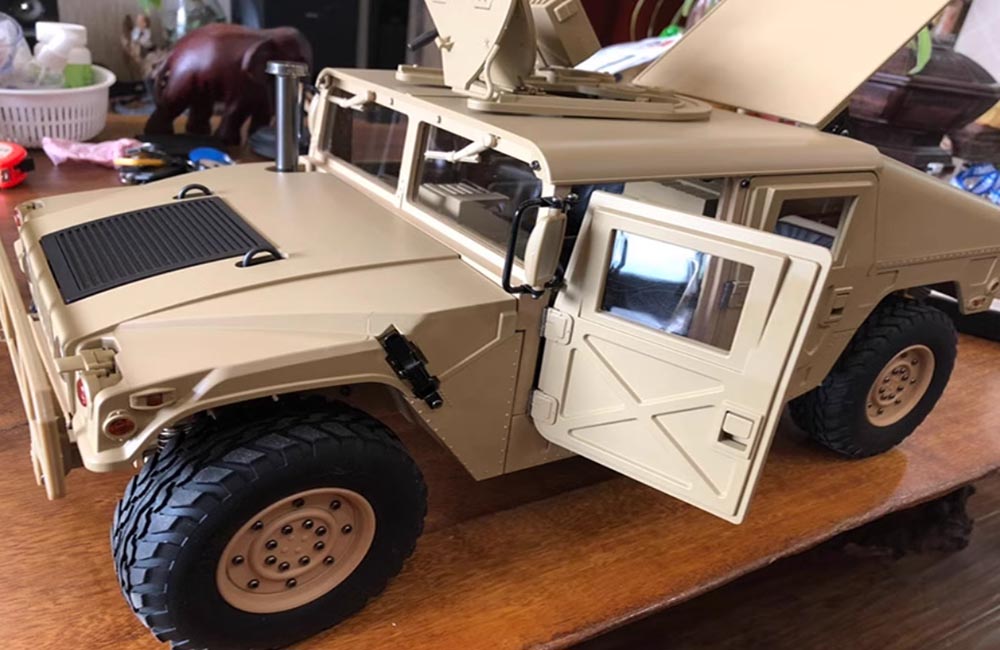

10. The hood, doors and tailgate can all be opened.

Hengguan HG-P408 What are the characteristics of the 1/10 simulation four-wheel drive RC CAR?

1. Four-wheel drive high-speed performance: strong power, suitable for high-speed off-road.
2. Simulation design: 1/10 scale simulation Hummer, exquisite details.
3. Convertible structure: strong visual impact, suitable for outdoor off-road.
4. Multi-color selection: desert yellow, military green, camouflage, to meet individual needs.
5. High cost performance: domestic model, affordable price, excellent performance.

How to operate Hengguan HG-P408 1/10 simulation four-wheel drive RC CAR?

1. Familiar with the remote control: master the functions of each button and operate proficiently.
2. Assembly and charging: assemble according to the instructions and use USB charging.
3. Mode switching: switch 2H, 4H, 4L modes according to road conditions.
4. Safe driving: drive carefully on complex road conditions and avoid high-speed mode switching.
5. Maintenance: check vehicle components regularly to ensure good condition.

Hengguan HG-P408 1/10 simulation Is the 4WD convertible jeep remote control off-road vehicle worth buying? How is the cost performance?

Hengguan HG-P408 is worth buying and has a high cost performance. Its 4WD is powerful, the simulation is high, and the metal chassis is durable, which is suitable for off-road competition and model collection. Domestic affordable price, performance comparable to imported models, easy maintenance, multiple colors are available, it is an ideal choice for outdoor players and military fans.

Summary

Hengguan HG-P408 1/10 simulation 4WD convertible jeep, 4WD is powerful, simulated Hummer design, good off-road performance, durable metal chassis, multiple colors are available, high cost performance, suitable for outdoor competition and military model collection.
